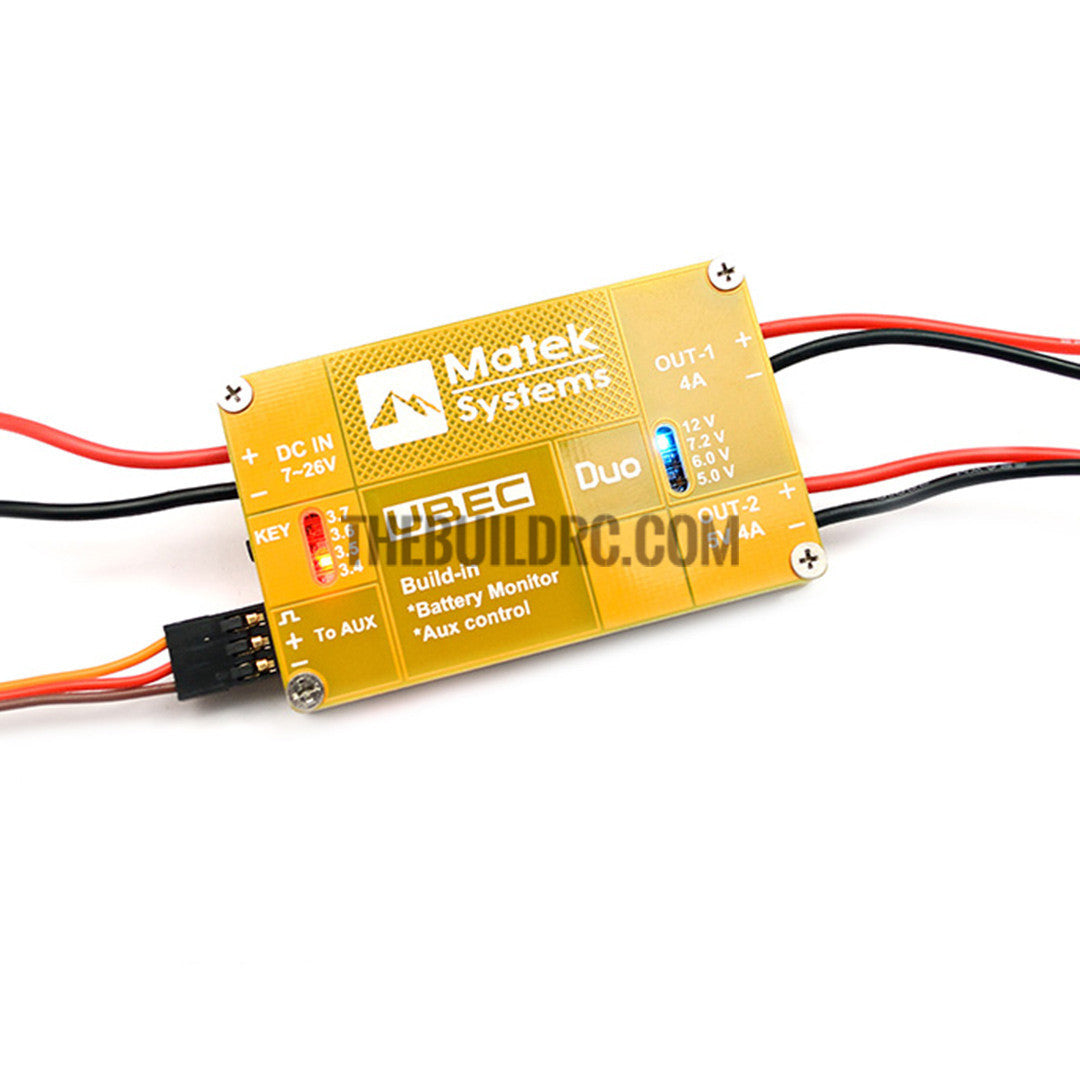

Matek UBEC 4A/5-12V Duo Output Built-in Battery Monitor Aux RX FLIGHT Control
- Switch-mode buck regulator
- Two output channels
- Built-in Aux control (on/off) function
- This feature can be used to power and switch on/off a wide variety of and 5~12 of electric equipment, such as video transmitters, FPV camera systems, HV servos, navigation lights, bomb drop, etc.
- Low input voltage alarm and threshold setting (3.4V, 3.5V ,3.6V ,3.7V per cell and automatic cell count detect 2-6S.
- Output short protection
Specifications
- Input voltage range: 7~26V (2S~6S Lipo battery)
- Out-1: 5V, 6V, 7.2V, 12V (adjustable), 4A, Max 6A. Inbuilt Aux control switch
- Out-2: 5V, 4A, Max 6A
- Efficiency: up to 95%
- Standby current: 10mA
- Lipo voltage alarm setting: 3.4V, 3.5V ,3.6V, 3.7V /Cell and OFF
- Input cable 20cm (silicone 20AWG), output cable 30cm (2 pairs, silicone 22AWG)
Includes: 20 cm servo cable (male to male) for the Aux channel input.
