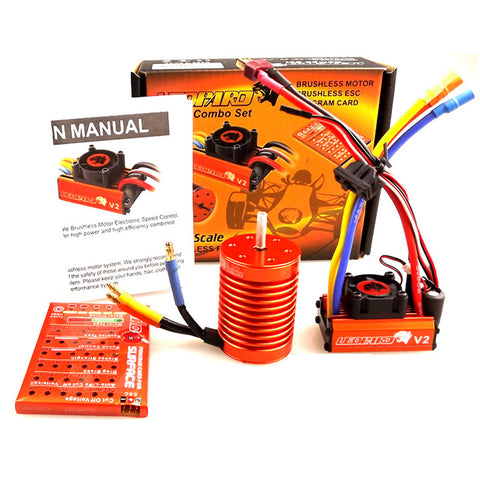

SKYRC LEOPARD 60A ESC 9T 4370KV Brushless Motor 1/10 Car Combo Program card
Motor Specifications:
- Rotational Speed: 4370 KV
- Turns of the Motor: 9T
- Max. Amps: 48A
- Resistance: 125ohm
- Motor Dimensions (Diameter x Length): 35.8mm x 50mm
- Shaft Dimensions (Diameter x Length): 3.17mm x 15mm
- Input Battery Types: NiCd / Nimh / Li-po Battery
- Recommend Model: RC Model 1/10 Car
- Net Weight: 172g
ESC Introduction:
- LEOPARD 60A ESC is high performance 1:10 Scale Brushless Motor Electronic Speed Control. The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.
- Model:Leopard 60A ESC V2
- Continuous / Burst Current: 60Amp / 90Amp
- Input Power (Cells): 2-3S LiPo, 4-8S NiCd / NiMh
- On Resistance: 01ohms per phase
- Linear BEC: 5V / 2Amp
- 2S LiPo On Road:=>9.0T Off Road:=>1T
- 3S LiPo On Road:=>1T Off Road:=>13.0T
- Function: Fwd/Brk or Fwd/Bra/Rev
- Thermal Overload Protection: Yes
- Dimensions (Length x Width x Height): 51.6 x 30 x 27.4mm (2.03 x 1.18 x 1.08in.)
- Net Weight (With wires): 78g(2.75oz)

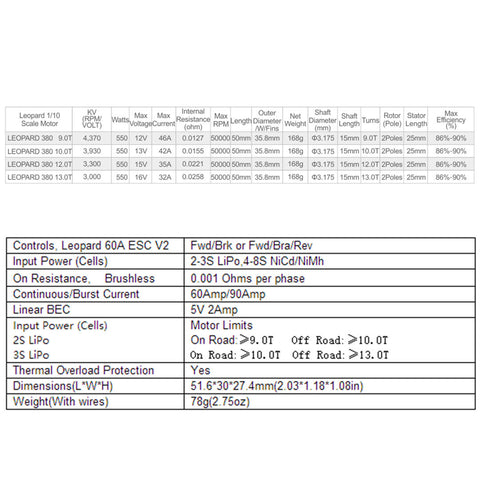

ESC Specifications:
