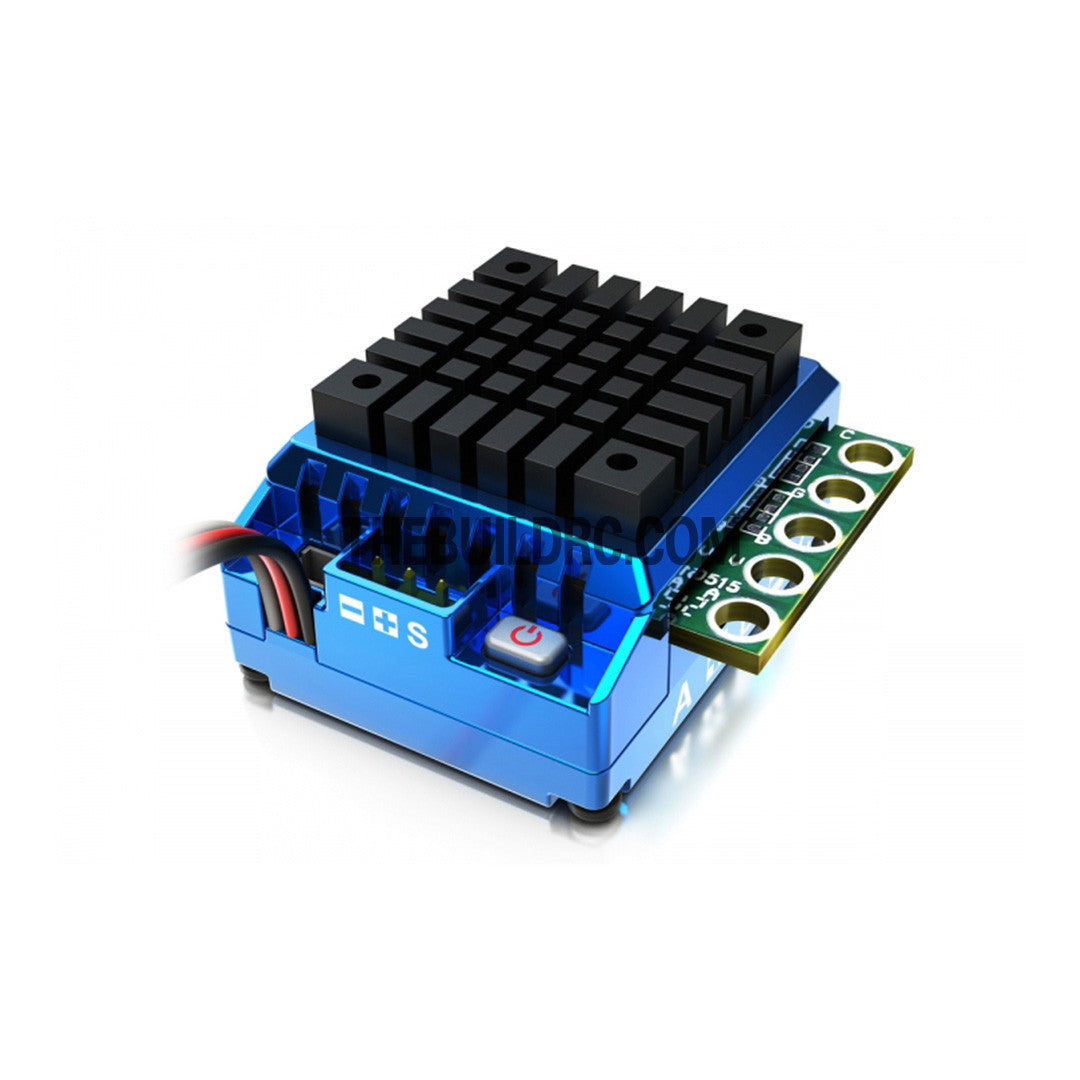

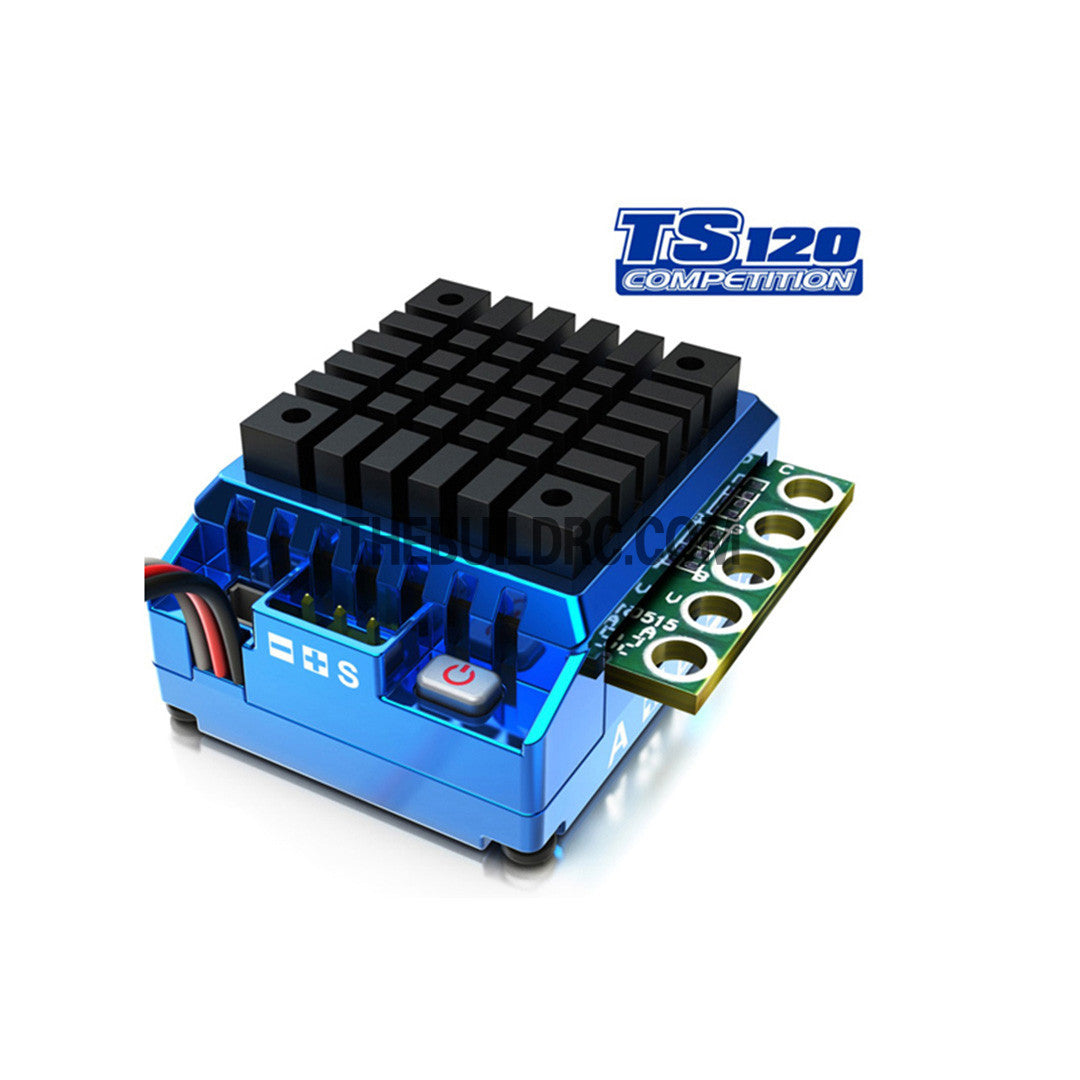

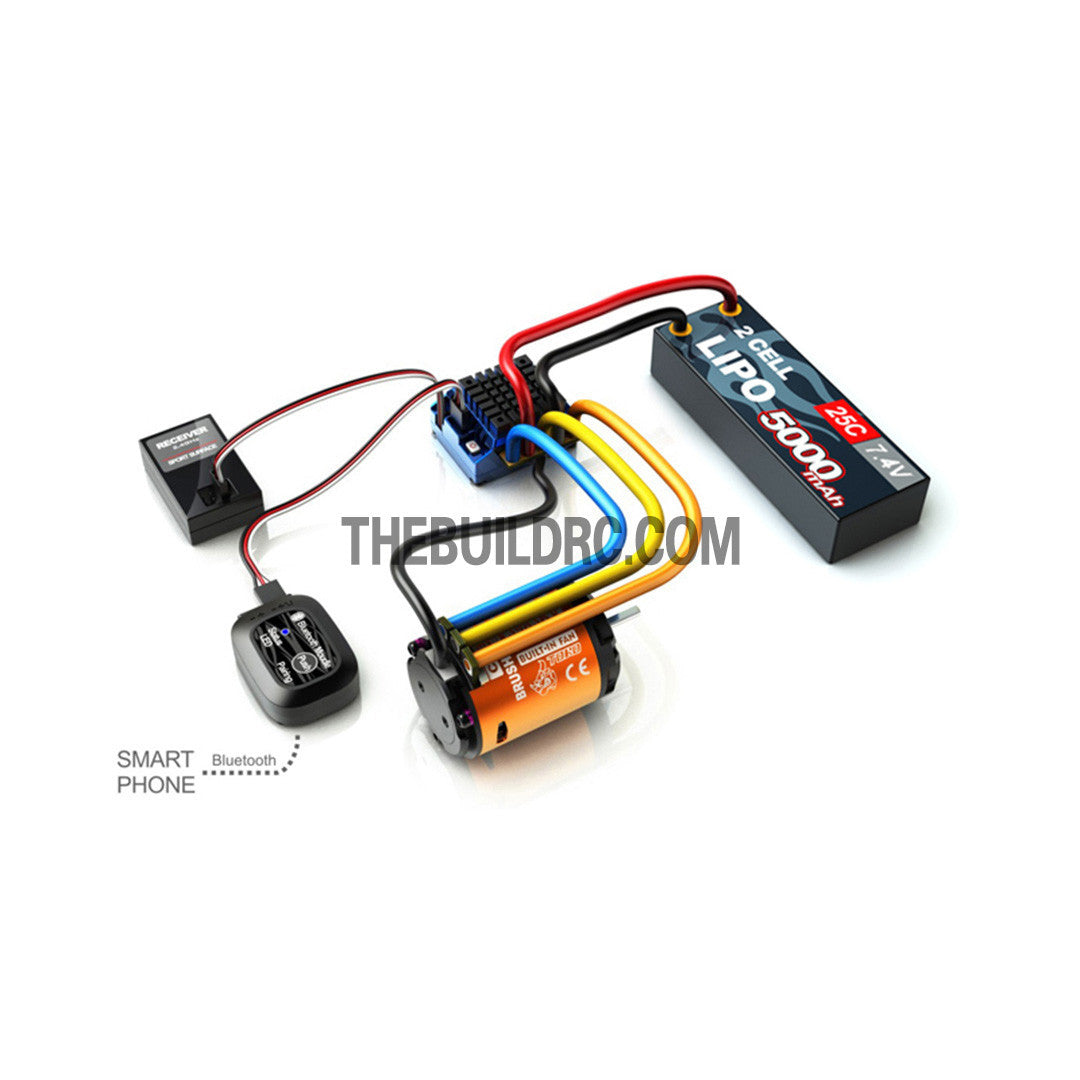

SkyRC TORO TS 120A Brushless Sensored Motor Blue Tooth Programmable ESC For 1/10 RC Car
SkyRC Toro TS 120A ESC for 1/10 Scale Car is designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and with 6V/3A BEC system.
10 sets of profiles could be set and stored in the ESC. These data could be called out at any time without any special programming setting. All the setting can be exported or imported for data comparison and analysis.
??
Features:

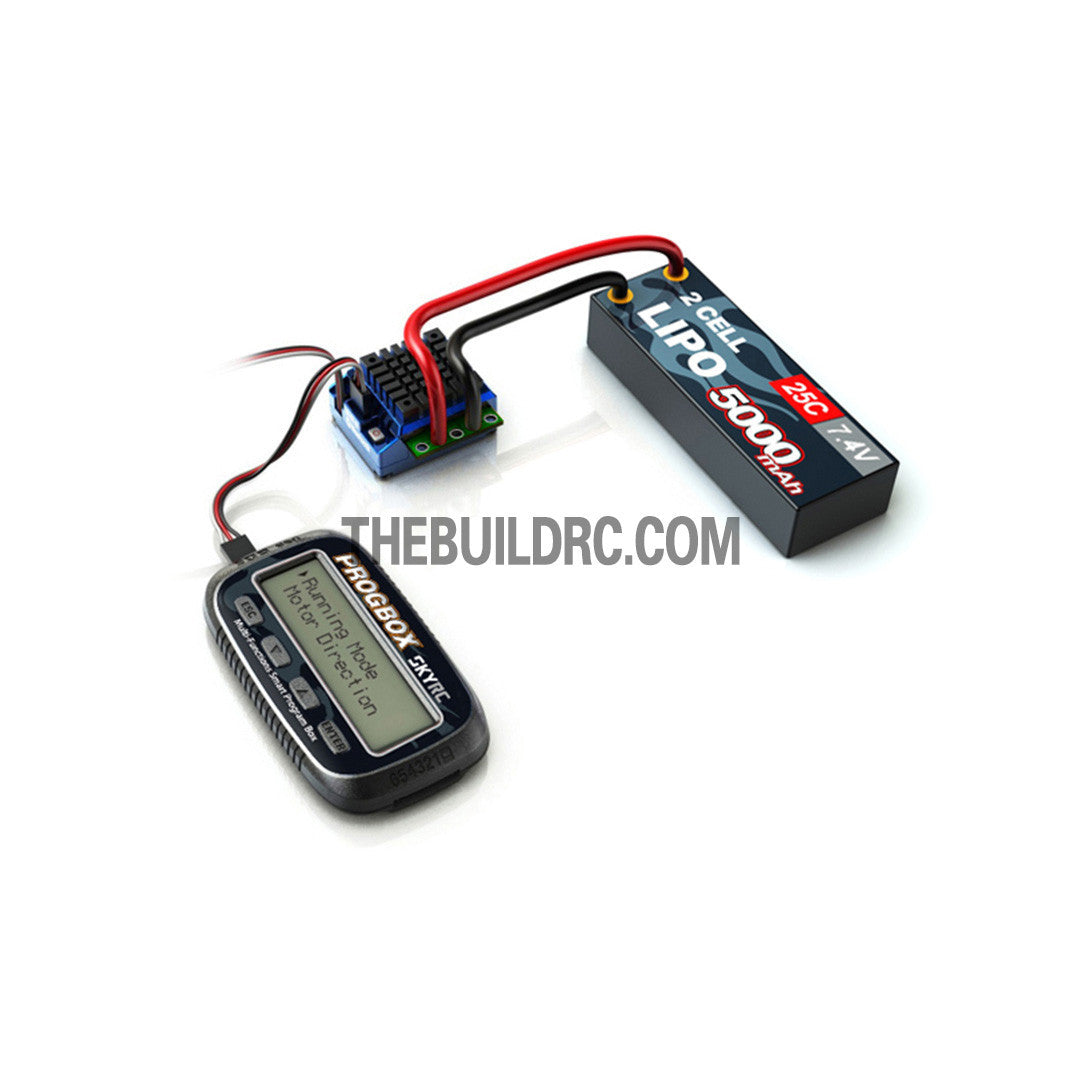

- Programmable.
- Blue Tooth Supported.
- Built-in BEC.
- Low voltage protection.
- Motor and ESC overheat protection.
- Signal lost protection.

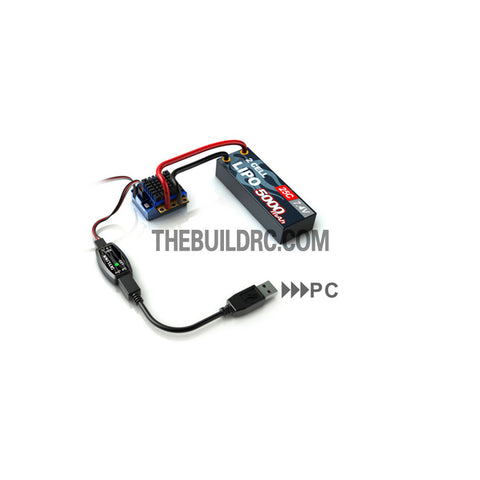

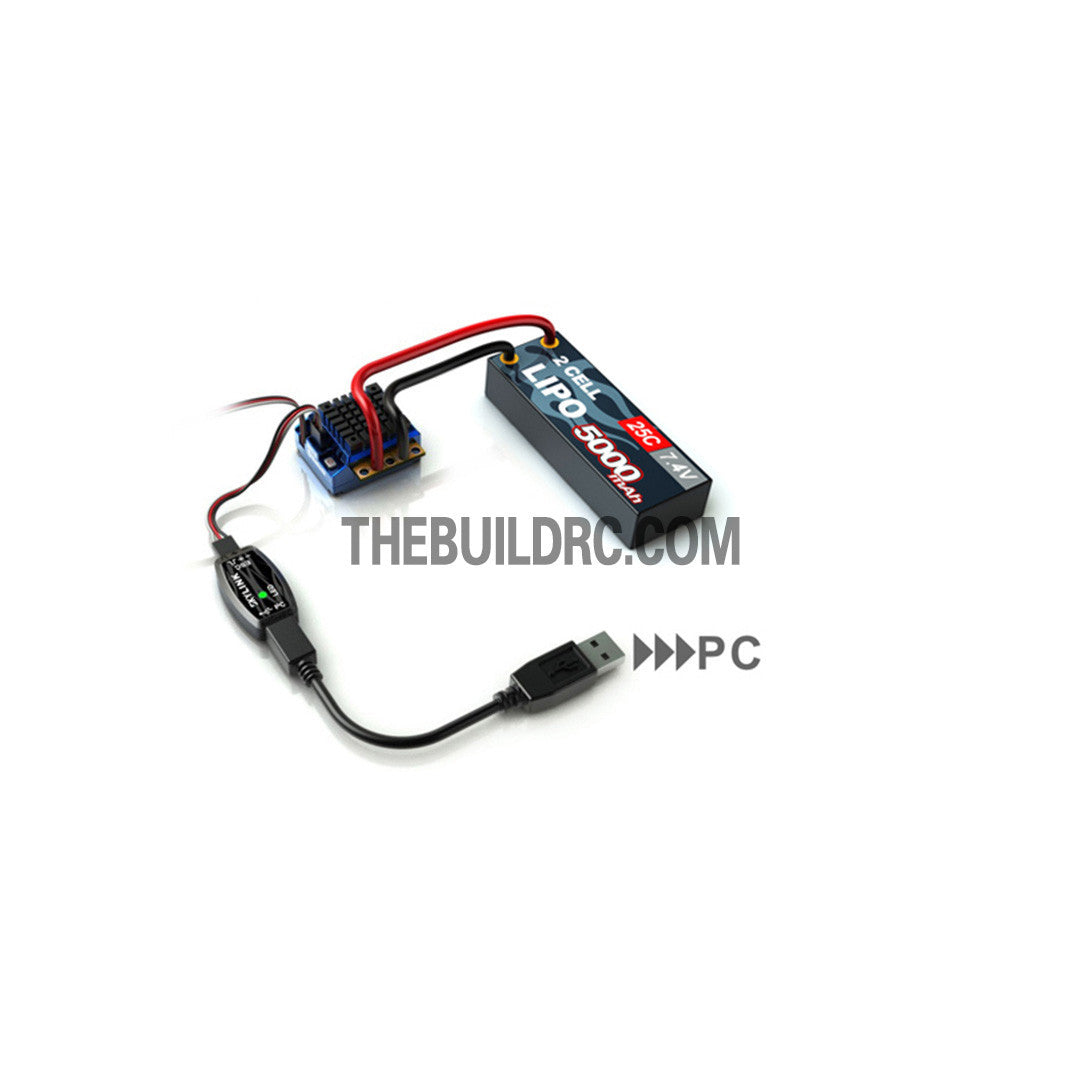

- Firmware can be updated by connecting the ESC with PC or smart phone.
??
??
Precise programmable items.
Advanced Timing System
Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.
??
Well-performed Throttle and Brake Control Function.
Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves, and different customers' request for Line and power all cab be met.
??
Additional Information
Motor Compatible: Brushless Sensor & Sensorless ESC
Car Compatible: 1/10 and 1/12 Buggy and Truck
???????????????????????????????????????????????????????????????????????????????????????? 1/10 and 1/8 Crawlers
Motor Limits: 5-6S NIMH or 2S LIPO--???3.5T(1/10 Buggy), ???5.5T(1/10 Truck)
?????????????????????????? ????????????????????????????????????????????????????????????8-9S NIMH or 3S LIPO--???5.5T(1/10 Buggy),???8.5T(1/10 Truck)
Resistance: 003ohm
Battery Cell Count: 4-9S NIMH or 2-3S LIPO
FAN: 5V@0.2A , MAX 12.6V
??
